Replacement Reel Handles

Looking to change the handle on your Shimano Tranx Reel?  This Shimano Tranx Paddle Handle is OEM and is made to fit all Tranx 300A and 400A size reels.  This handle fits the Tranx 300, 301, 300HG, 301HG, 400, 401, 400HG, 401HG.

This Shimano made handle is easy to replace, just remove your existing nut lock screw, the nut lock plate, and the chrome nut. Remove your existing handle and replace it with the new handle.  Be careful that the drag star doesn't pop off, it has a spring under it which gives it pressure from below.  Replace the parts you took off making sure not to over tighten the chrome nut. The nut lock plate might take a little adjustment so the plate nut screw lines up with the screw hole.

The power handle version is a single knob to give you a better grip and more power on bigger fish. The power handle works best when you need more power and torque on bigger fish.  We find the power handle is better on bigger fish or if you have a problem with your hand slipping off on an aggressive bite.  On the west coast, we like the power handle for fishing surface irons and yoyo irons like the Salas 7X, Salas 6X or Tady 45 and Tady 4/0.

Qty 1 per package

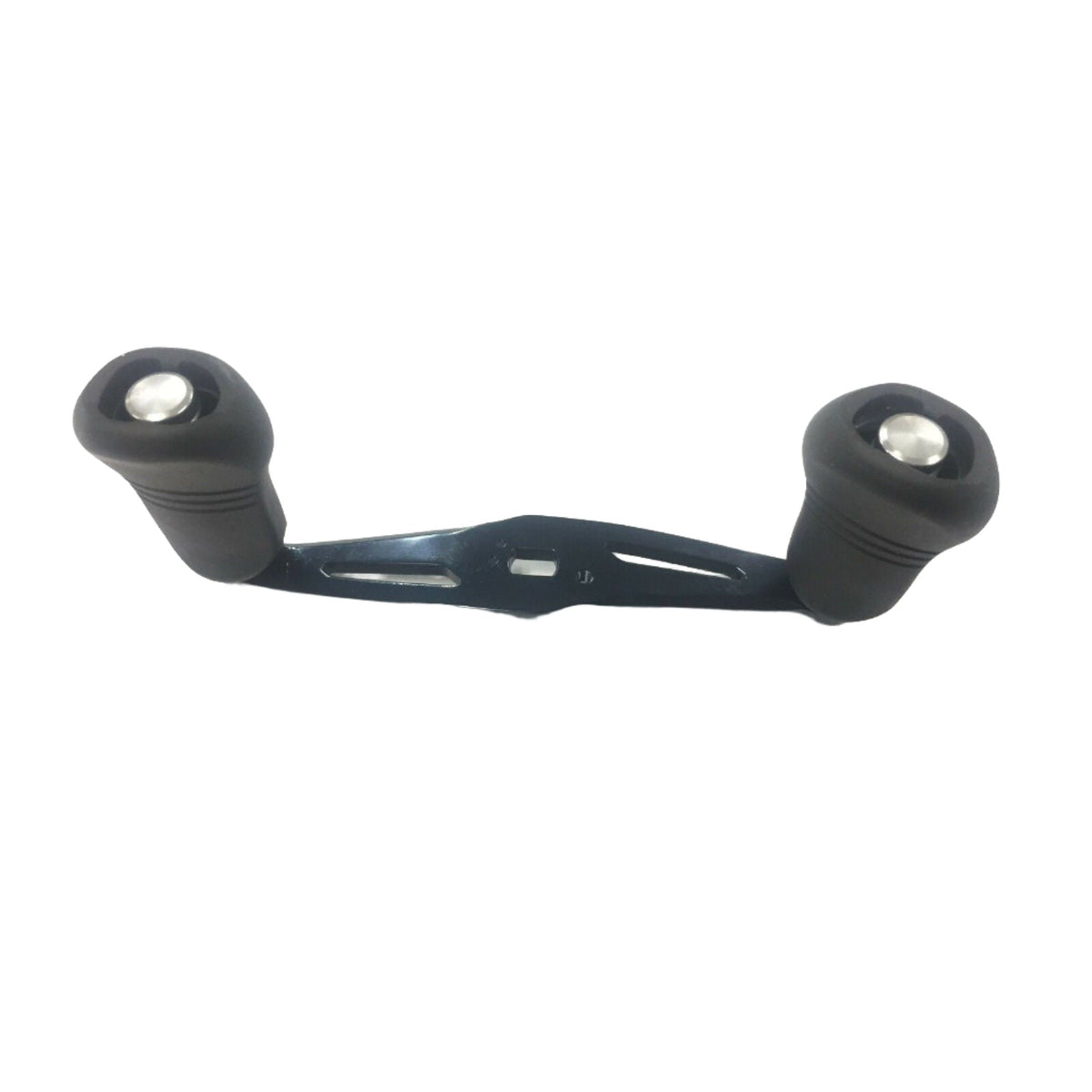

Looking to change the handle on your Shimano Tranx Reel?  This Shimano Tranx Power Handle is OEM and is made to fit all Tranx 300A and 400A size reels.  This handle fits the Tranx 300, 301, 300HG, 301HG, 400, 401, 400HG, 401HG.

This Shimano made handle is easy to replace, just remove your existing nut lock screw, the nut lock plate, and the chrome nut. Remove your existing handle and replace it with the new handle.  Be careful that the drag star doesn't pop off, it has a spring under it which gives it pressure from below.  Replace the parts you took off making sure not to over tighten the chrome nut. The nut lock plate might take a little adjustment so the plate nut screw lines up with the screw hole.

The paddle handle version is a double handle to give you better balance and more refined retrieves for fishing many types of lures.  The paddle handle works best when working lures or when you just don't need the larger power handle.  We find the paddle handle has better balance but not as much torque.

Qty 1 per package

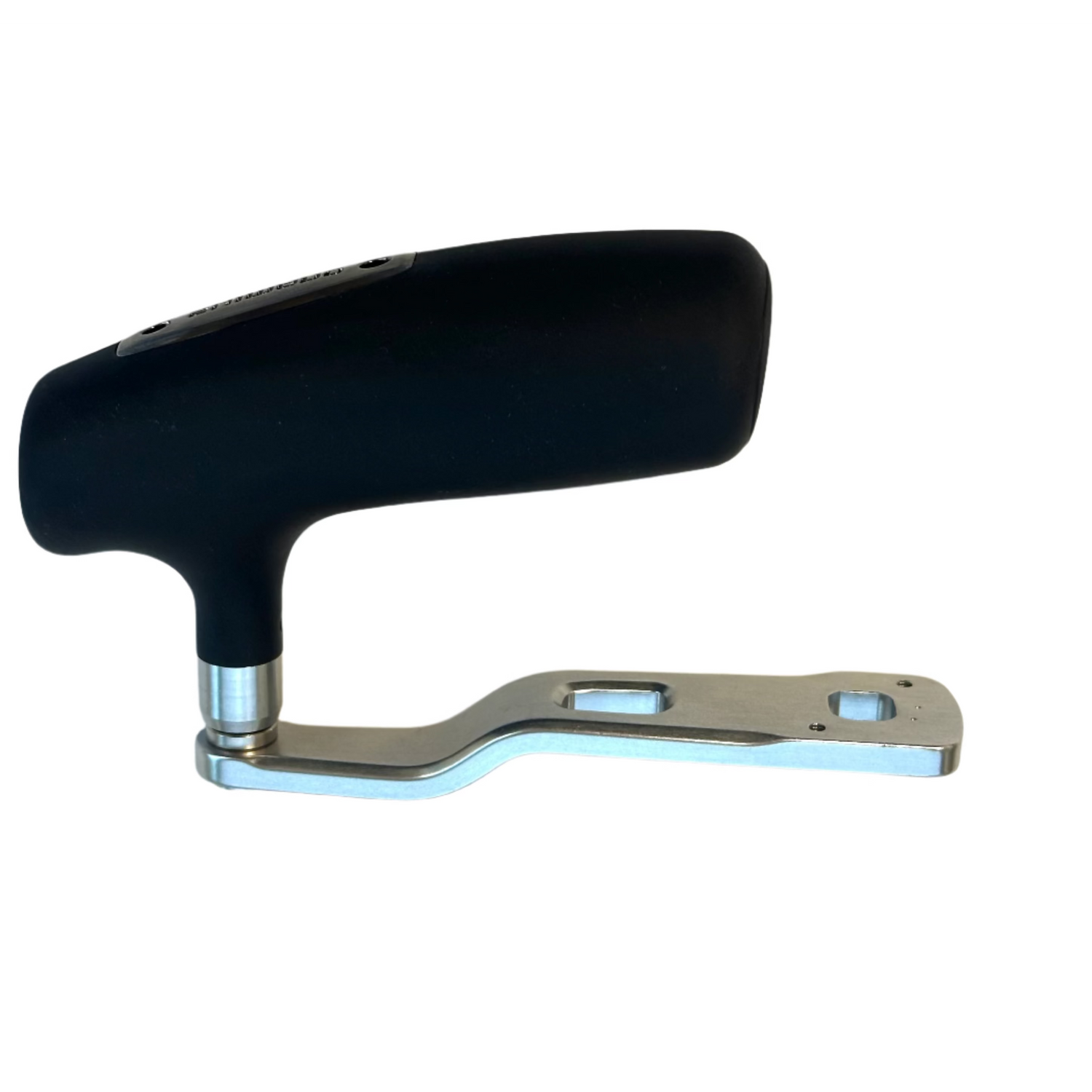

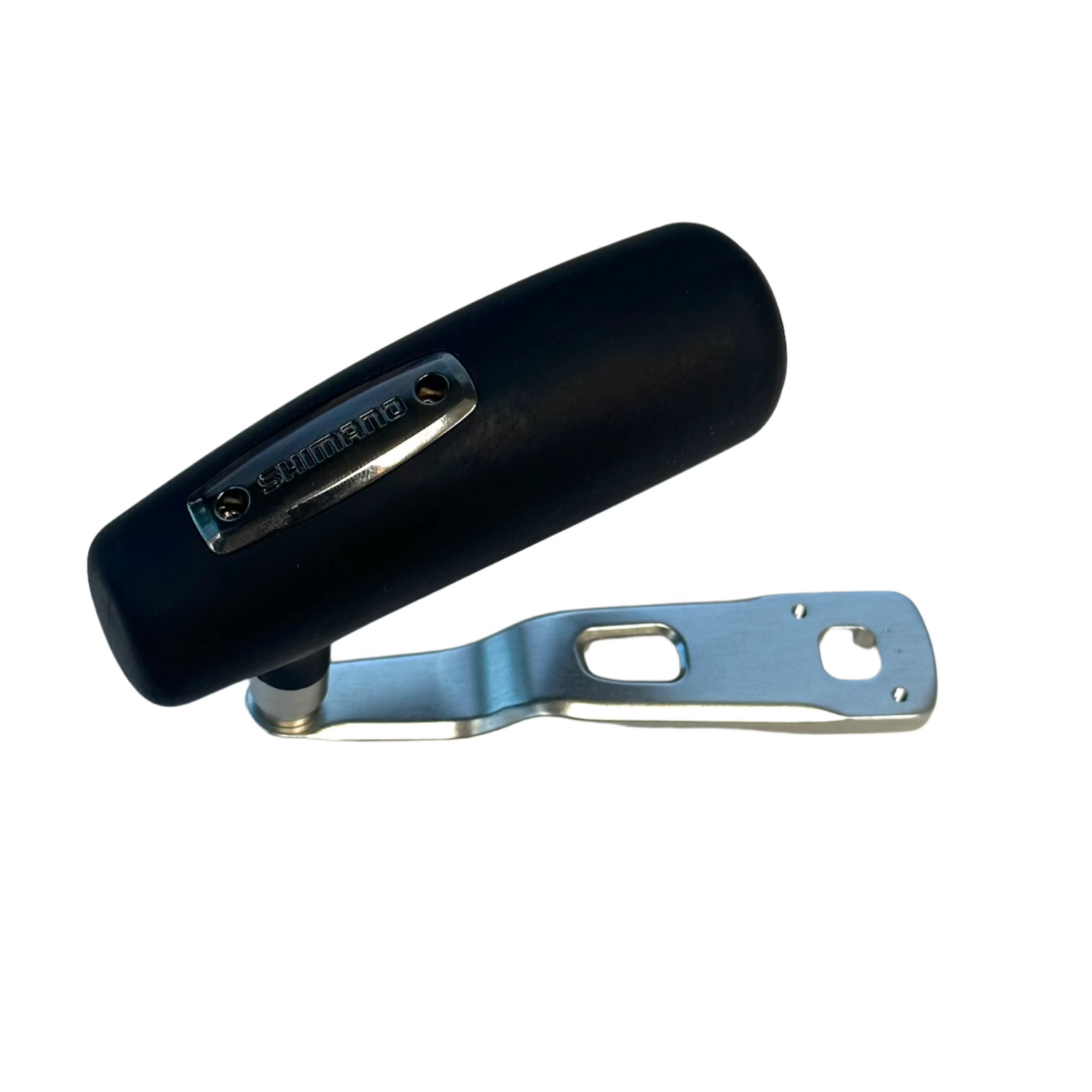

Shimano Talica-A T-Bar Handle Replacement is the T-Bar handle that comes stock on the new redesigned Talica 20IIA & 25IIA, producing unparalleled winding power. The new T-Bar Handle replacements will fit previous 2 speed model Talica II allowing you to gain more leverage and improved ergonomics when retrieving big fish. Original Shimano part and is easy to install, simply requiring a screw driver and wrench to change out your smaller handle. Enjoy increased comfort and control while reeling in a catch.

Shimano Talica A T-Bar Handle Replacement Fits:

Talica ll & Talica IIA

• TAC12II
• TAC16II
• TAC20II
• TAC25II

The T-shaped knob has a 9 degree offset to increase grip and torque.  With a 101mm arm length the Shimano Talica A T-Bar Handle Replacement allows for more power while cranking on a fish.  A great upgrade for your jigging setup, making for more comfort and ease while fishing vertically and winching big fish out of the depths.

When fishing long hours grinding large jigs, the T-Bar Handle's comfortable grip will help relieve cramping.  When that "cow" tuna does bite, you'll be ready for the long battle.

Shimano OEM Part

Specifications:

  Arm Length: 101mm / 4in

  Handle Length: 98mm / 3.88in

  Handle width: 66mm / 2.63in

  Handle top-side Diameter: 24mm / 0.95in

  Handle bottom-side Diameter: 32mm / 1.25in

  Handle Weight: 3.4oz

Installation:

First, you must remove the two Phillips screws on each side of the 2-speed button. Gently remove the switch cover, small plastic spacer with switch (Leave switch and spring in the plastic spacer, for reverence)

With a wrench unscrew the two-speed button (set aside) and then remove handle.

Then slide new handle over the post, followed by the two-speed button (tighten well, to help line up spacer screwholes) Place the plastic spacer and switch, then the cover plate and screws and tighten (Blue theadlocker 242 recommended).
